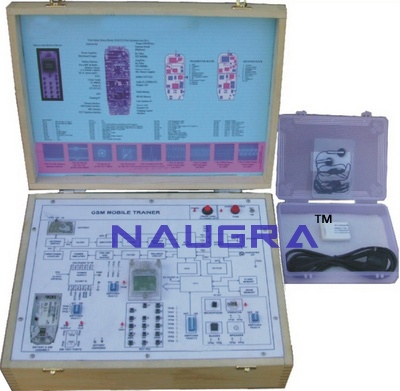

GSM Mobile Communication System Experiment Kit

Product Code: GSM Mobile Kit - IEGSM00212

Description: GSM Mobile Communication System Experiment Kit - It is equipped with features of circuit switched data, SMS, Voice and GPRS . GSM Mobile Communication System Experiment Kit is a perfect solution to use with SMS gateways, access internet while on the move and corporate communications (GPRS, Data transfer & PC Fax even in remote location). The Mobile communication system is controlled by a microcontroller. Programs for this microcontroller can be written in a variety of languages including Assembly, C The use of Flowcode for mobile communication technology is well supported with an Experimental manual and pre-written high level routines for controlling all parts of the system. This also includes several working programs. FEATURES Dual /tri band 900/1800/1900 MHZ GSM Data, SMS (Text & PDU), Fax, Voice and GPRS DC input voltage Fully compliant with ETSI, GSM Phase 2+specifications Low power consumption AT Commands 1.8v & 3V SIM Interface RS-232 interface (9 PIN ‘D’ type female) Connectivity GSM / GPRS Specifications Module Dual/Tri band GSM 900/1800/1900MHz with class 10 GPRS Output Power Class 4 (2W for GSM 900) Class 1 (1W for GSM 1800) SMS Supports Text and PDU mode, Point to Point & Cell Broadcast Data Data circuit Asynchronous and non transparent upto 14.4 kbps Autobaud rate (2400, 4800, 9600. 19200, 38400, 57600 bps) Fixed baud rate (300, 600, 1200, 9600, 115200 bps) Fax Automatic fax group 3 (Class 1 & 2) Modem compatibility V.29, V.27 (TER and V.21Ch II) PC Fax compatibility CCITT, G3 GPRS Packet Data Feature Class 10 Coding Scheme CS1 to CS4, embedded TCP/IP Stack AT Commands Interface GSM 07.05 and 07.07 Connectors RS-232 Serial, DC Power socket SMA Antenna connector, SIM Card Holder Power Adaptor Input 7.2V DC 1.5A LED Indications Power ON, Network Antenna SMA Rubber /WHIP Antenna LIST OF EXPERIMENTS Study of GSM technology Getting started with GSM trainer Study of GSM MODEM and it’s components Study of SIM Introduction to AT commands Voice communication using AT commands Data communication using AT commands Sending text message using flowcode software
